RAM TORQUE LARGE RAIL BASE

$54.90

10

Code:RAMB40811215U

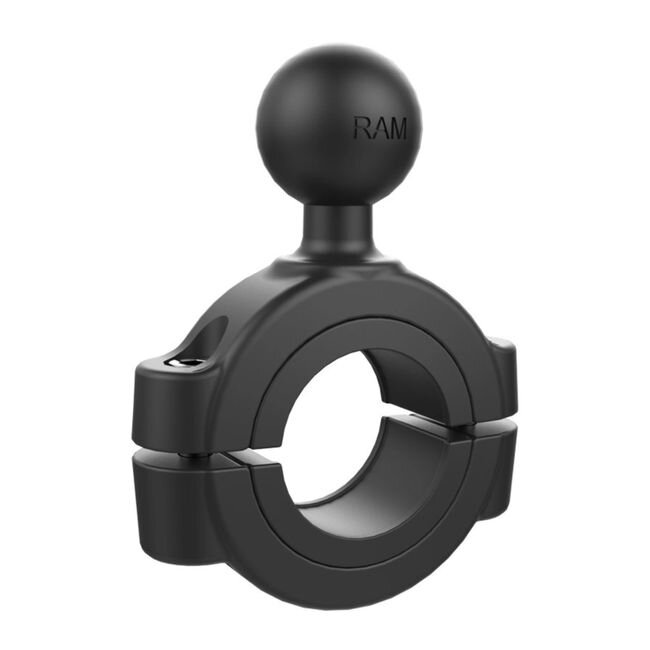

The large version of the RAM® Torque™ handlebar mounting base features a 1" B size RAM® rubber ball and is compatible with rails 1 1/8” to 1 1/2" in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The large RAM® Torque™ mounting base also includes nylon-insert locknuts to prevent loosening in high vibration environments.

Features:

Handlebar mounting base with B size 1" rubber ball accommodates rails 1 1/8" to 1 1/2" in diameter
Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Specifications:

CLAMP RANGE: 1.125" (28.5mm) - 1.5" (38.1mm)diameter
BALL SIZE: B Size (1", 25.4mm)

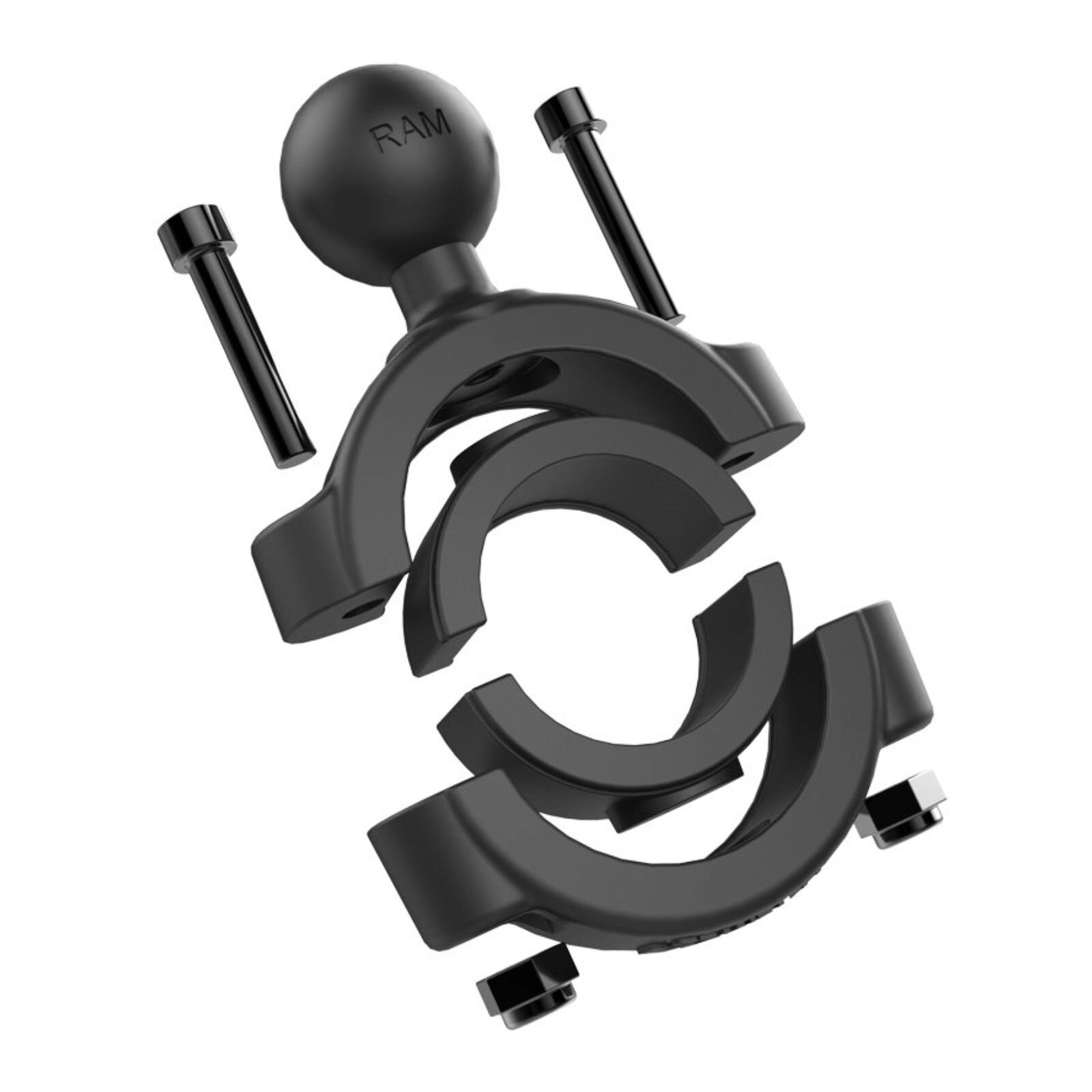

Harware Included:

x2 #10-24 x 1" Socket Head Cap Screws
x2 #10-24 Nylock Nuts
x2 1.12" Split Reducing Bushings
x2 1.27" Split Reducing Bushings
x1 5/32" Hex Key Wrench
x1 127mm x 17mm Rubber Adhesive Strip

Price: $54.90
